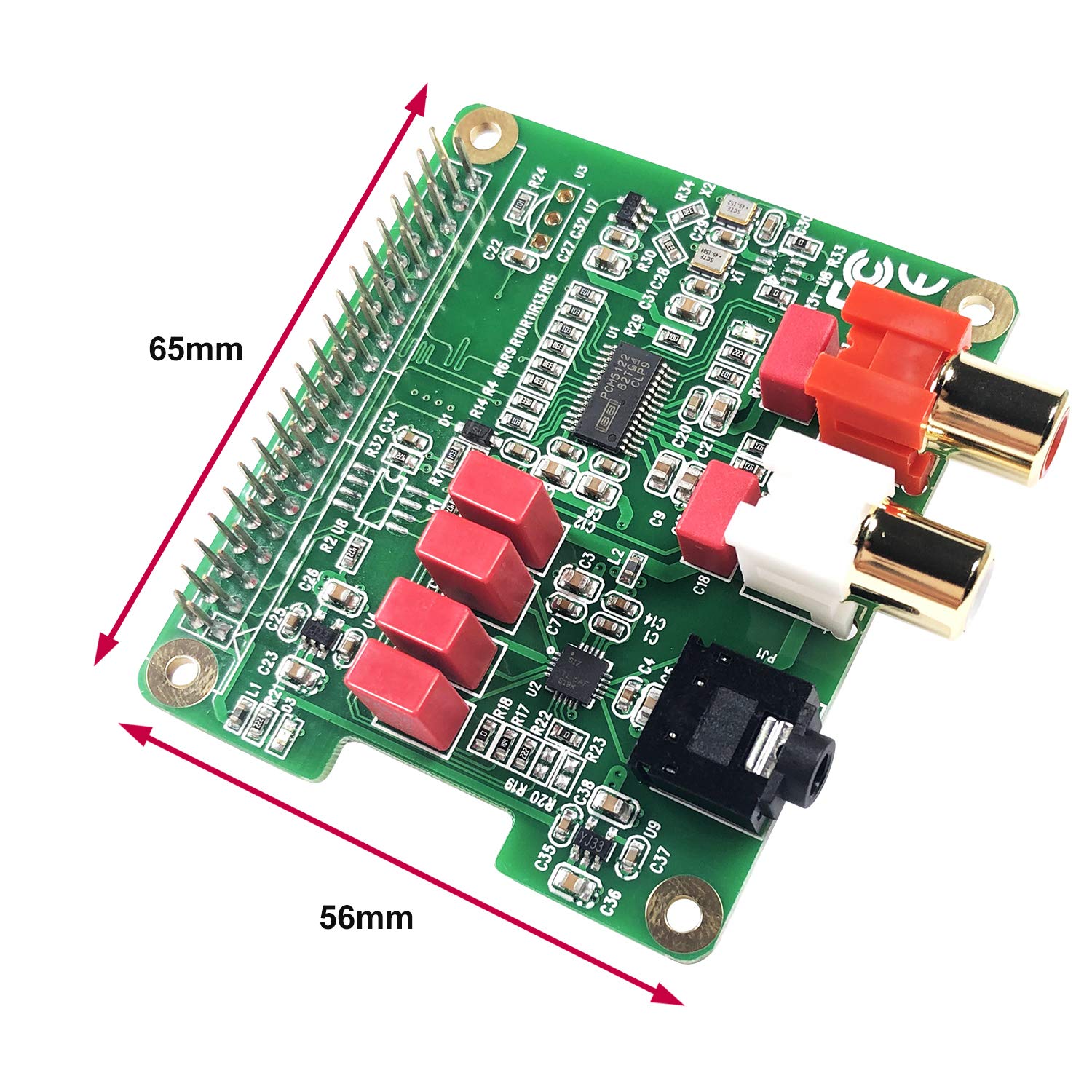

🔥 InnoMaker Raspberry Pi HiFi DAC HAT PCM5122 HiFi DAC Audio Card Expansion Board for Raspberry Pi 4 3 B+ Pi Zero etc. (DAC HAT)
Review InnoMaker Raspberry Pi HiFi DAC HAT PCM5122 HiFi DAC Audio Card Expansion Board for Raspberry Pi 4 3 B+ Pi Zero etc. (DAC HAT)
So you can check out the other reviews One-Day Sale: Up to 60% Off InnoMaker Raspberry Pi HiFi DAC HAT PCM5122 HiFi DAC Audio Card Expansion Board for Raspberry Pi 4 3 B+ Pi Zero etc. (DAC HAT) at Amazon.com
only with $29.99
- The HiFi DAC Hat compatible with Raspberry Pi 4, Zero, Zero W, 3B, 3B+ with the 40-pin connector. Connects directly to the Raspberry Pi board, no additional cables required, no soldering. Easy to get more beautiful and fantastic sound by this RPI+DAC HiFi suits.
- Absolutely perfect to support all Raspberry Pi music playback system, like LibreElec, OSMC, Max2Play, RuneAudio, Volumio, Moode, PiCorePlayer, PiMusicBox, OpenELEC, Debian, Ubuntu etc. Support playing music from a hard disk or over the network. Support DSD over PCM(DOP) mode.
- Class-leading stereo audio DAC PCM5122, sample rates up to 384-KHz/32-Bit. Paired with stereo high fidelity headphone amplifier TPA6133. Provides 2.1Vrms ground-centered outputs coupled with Film capacitor.
- On-board a pair of gold plated RCA (LEFT &Right) jacks and a 3.5mm high-end headphone jack output, allow you free to play your music through Raspberry Pi to another terminals.
- Comes with software, document and friendly technology support. For more information, please refer to our wiki（view the link on color page comes with the goods).
Product Description
InnoMaker HiFi DAC Audio Hat for Raspberry Pi
- The Innomaker HiFi DAC Hat maybe the best optimized partner for Raspberry Pi audio output.
- Used on-board PCM5122 as the IIS clock master, instead of the clocks from RPI which comes with too much jitter.
- Added dual low jitter oscillators(45.158M and 49.152M) to support more exact sample rate clocks.
- No soldering, no additional cables. Just plug it in and do some simple configuration,
- You would get a high-class music player which is low-cost.
 |
 |
 |
|---|---|---|
TI PCM5122 ChipsetAudiophile Texas Instruments 32bit/384KHz DAC PCM5122
| TPA6130A2 AmplifierStero Directpath Headpfone Amplifier TPA6130A2
| 40-Pin ConnectorCompatible with Raspberry Pi 4, Zero, Zero W, 3B, 3B+, A+, A with the 40-pin connector. |
 |
 |
 |
 |
|---|---|---|---|

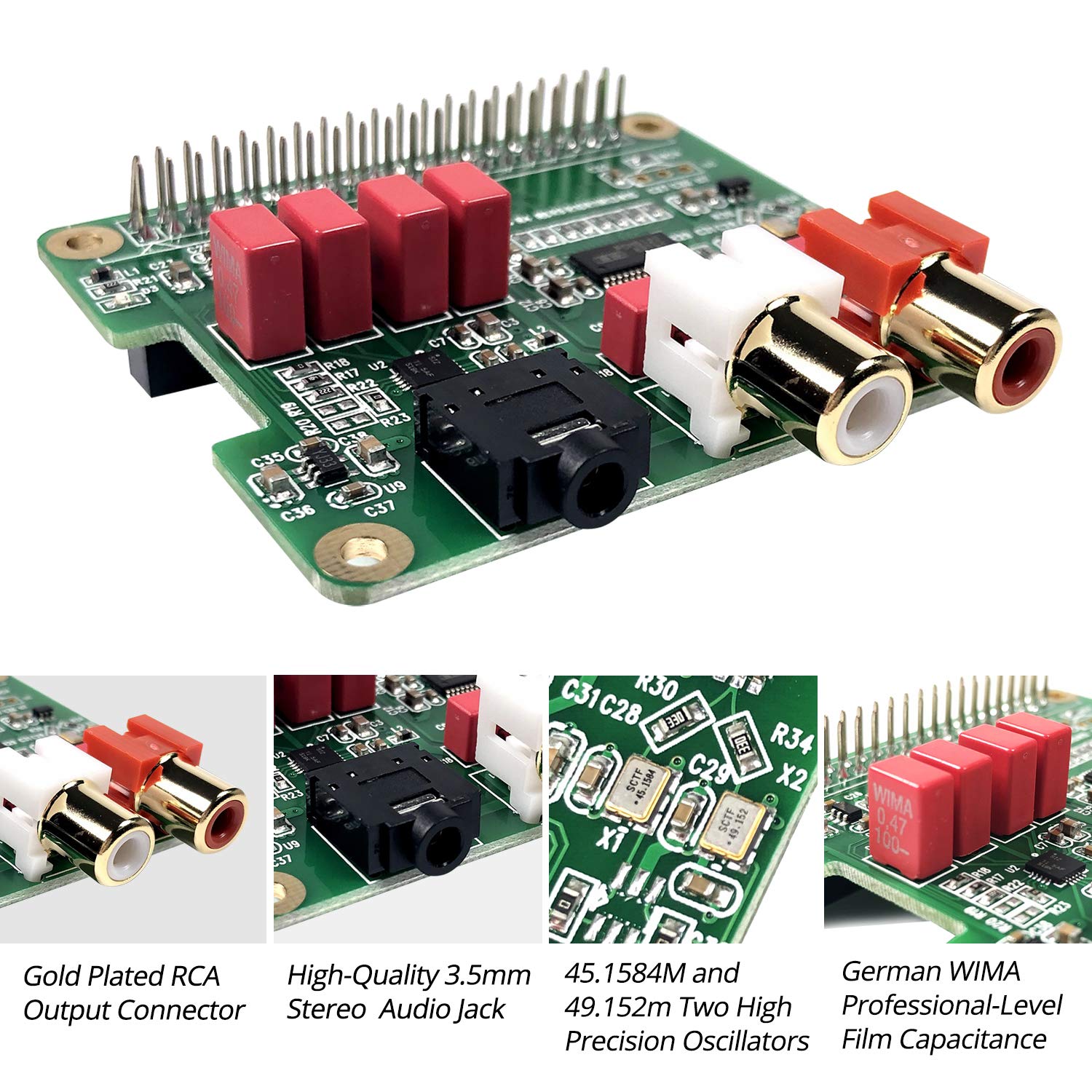

RCA OutputGold Plated RCA output connector | 3.5mm Audio JackHigh-quality 3.5mm stereo audio jack. With 138mw headphone Amplifier can directly drive headphone. | High Precision Oscillators45.1584M and 49.152M two hight precision oscillators | WIMA CapacitanceGerman WIMA professional-level film capacitance |
Note:
- In “Output” setting page, must seleted Output Device/DAC Model: Allo BOSS.
- We use two low jitter oscillators (45.158M and 49.152M) on-board to support more exact sample rate. It's way better than many other DAC module. If you make wrong driver setting, the dac module may play abnormal (for example: playback at double speed via HiFi-Berry driver).
[ Key Features: ]
- Dedicated 384kHz/32bit high-quality DAC PCM5122 for best sound quality.
- Audio output connectors: 2x RCA (LEFT &Right) &3.5mm head phone Jack.
- With 138mw headphone Amplifier can directly drive headphone.
- Work status indicators facilitate the understanding of the system working status.
- DAC SNR is 112Db.
- DAC THD+N @ -1 dBFS -78dB.
- Full Scale Output of DAC is 2.1Vrms.
- Dynamic Range of DAC is 112dB.
- Sampling Frequency ranges from 8kHz to 384kHz.
- Ultra-low noise voltage regulators for optimal audio performance.
- Integrated EEPROM for automatic configuration(Option).
- Automatically switching frequencies according to the input I2S signals.
- Dual low jitter crystal oscillators for Master Clock generation.
- Infrared remote control connector (using GPIO26).
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|

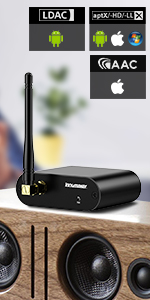

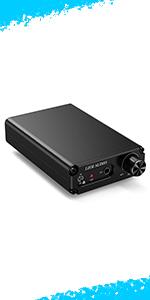

| HiFi AMP Hat for RPI | RCA to Headphone Amplifier | Bluetooth 5.0 Audio Receiver | OV9281 Camera for RPI | USB CAN COnverter | Arcylic Case for InnoMaker DAC Hat | |
